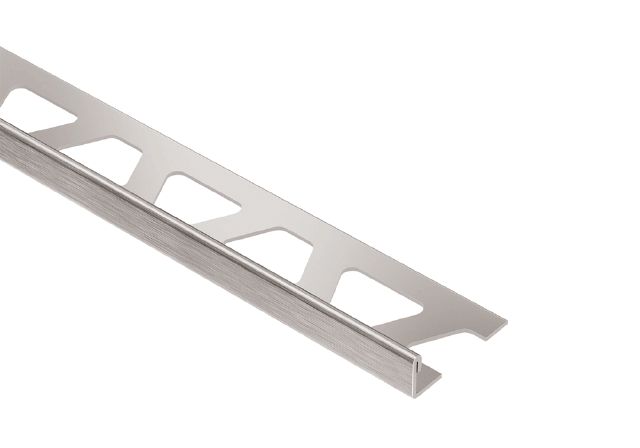

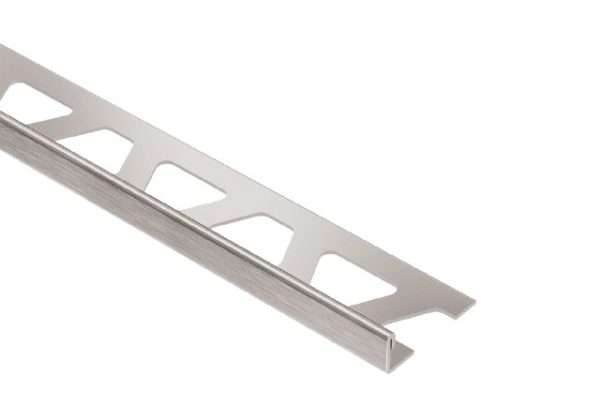

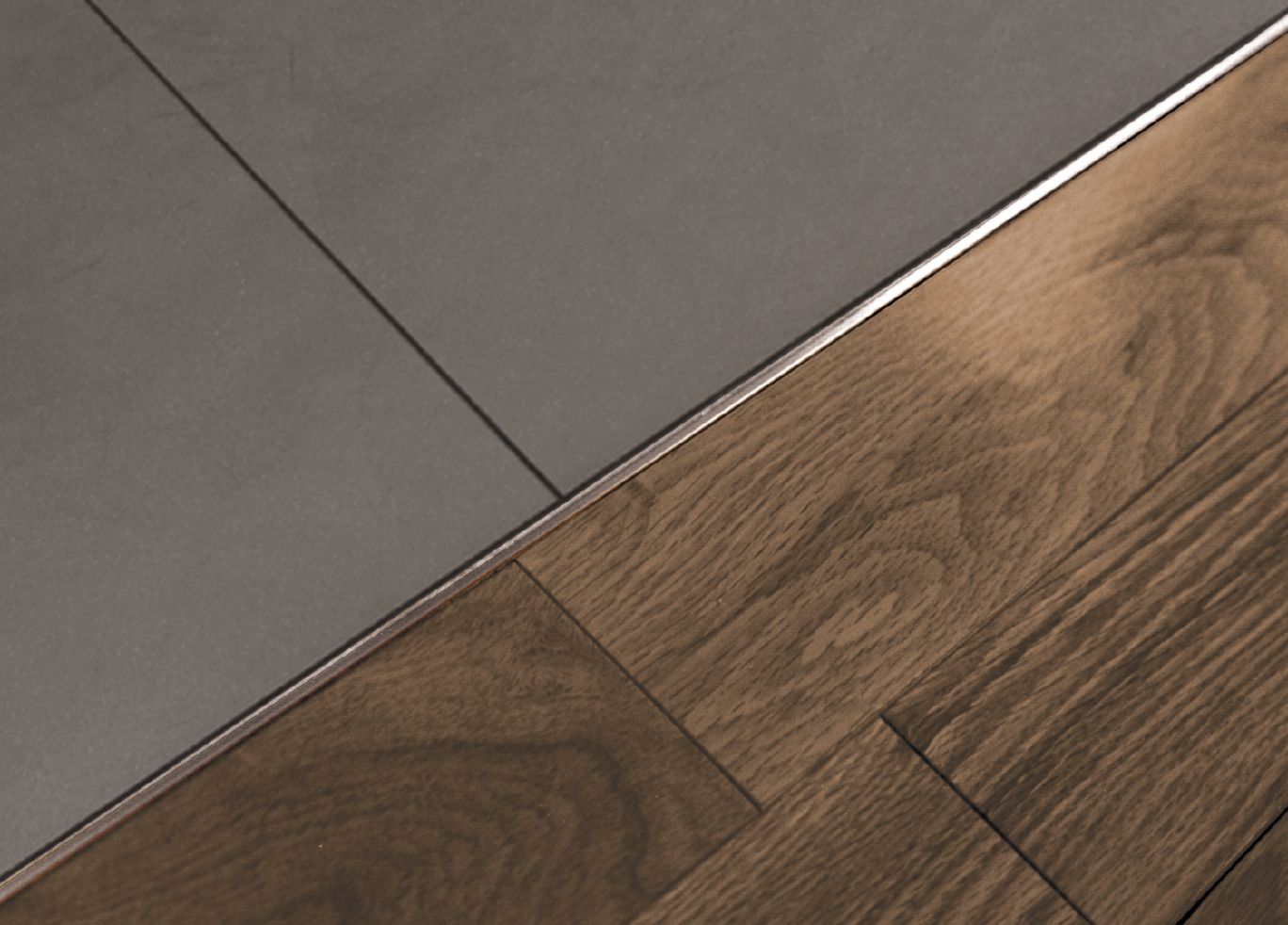

Schluter-SCHIENE is designed to provide edging for tile coverings. Typical applications include edge protection where tile is bordered by carpet, at expansion joints, or as a decorative edging for stairs.

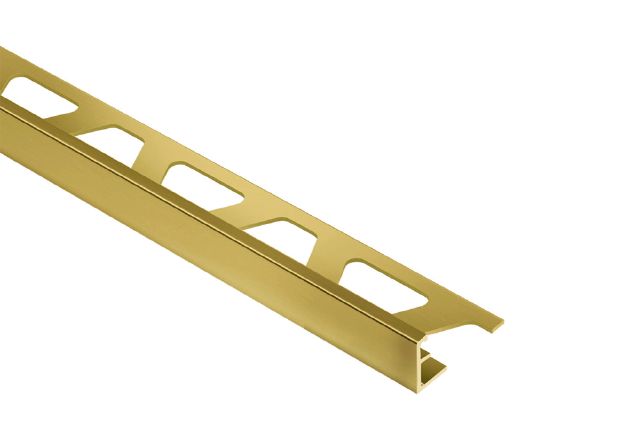

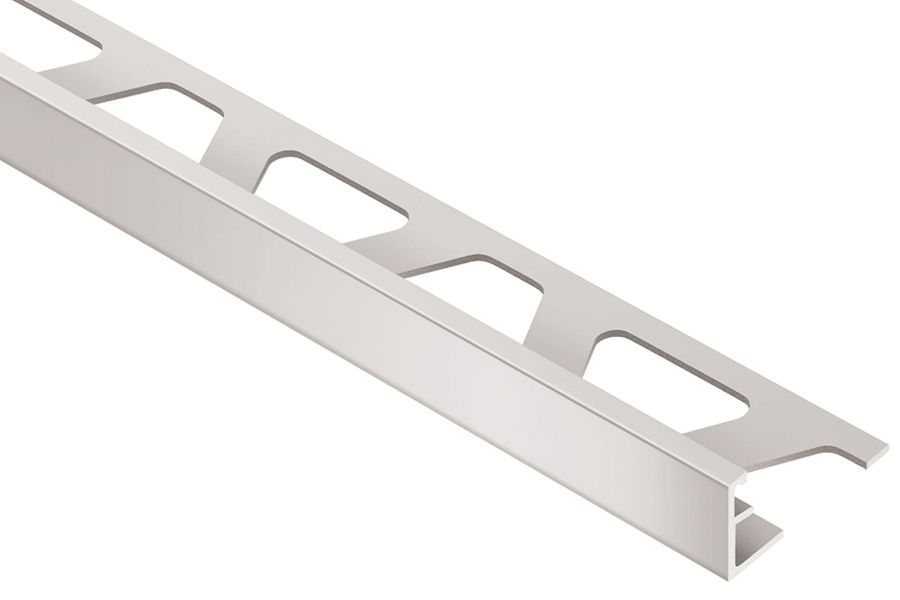

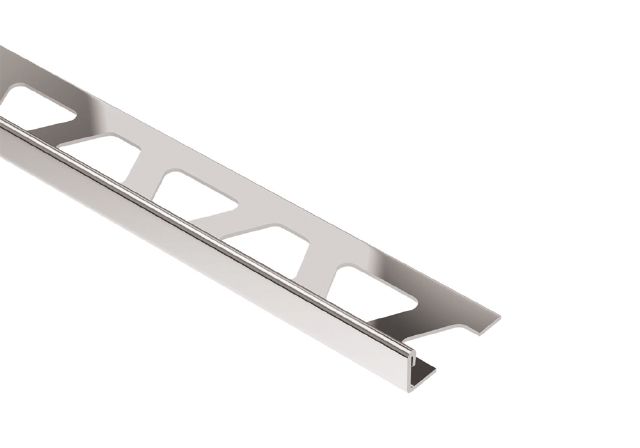

SCHIENE is available in stainless steel, solid brass, aluminum, and anodized aluminum. The profile features a trapezoid perforated anchoring leg, which is secured in the mortar bond coat beneath the tile, and an 87° sloped vertical wall section that transfers point loads to the substrate and surface covering while protecting tile edges from damage. SCHIENE, in solid brass, aluminum, and anodized aluminum, features a 5° sloped top flange and fillet at the anchoring leg/vertical section interface to enhance edge protection by reducing stresses on the tile, and, in sizes greater than 1/4″ (6 mm), features an integrated joint spacer that establishes a defined joint cavity between the tile and the profile.

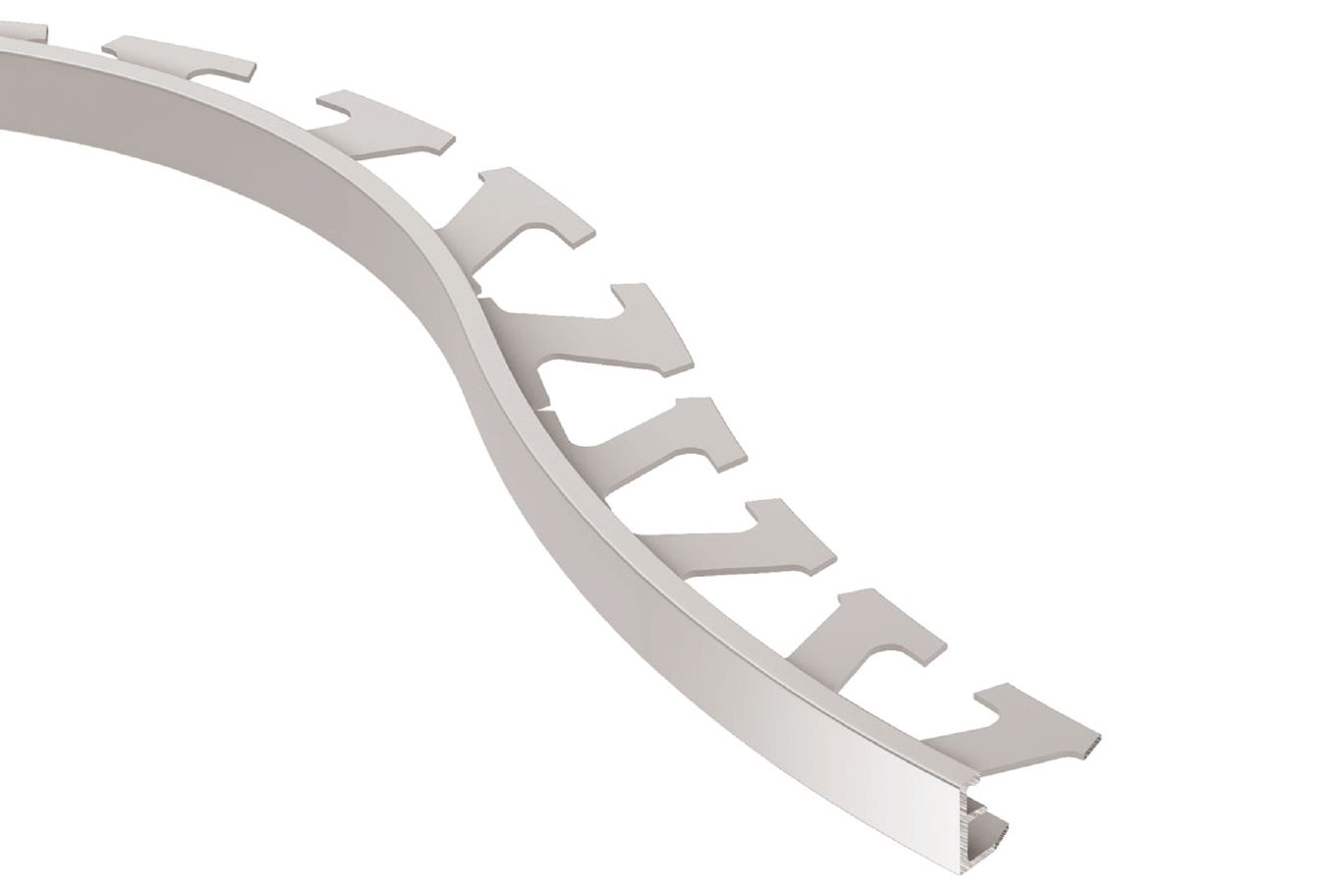

The anchoring leg of SCHIENE, in all materials, is available with a special radius perforation “R” so that the profile can be used to form curves.
